Touch Rotate Node

This control node allows the player to change the rotation of the asset by dragging it across the screen with either a finger or mouse.

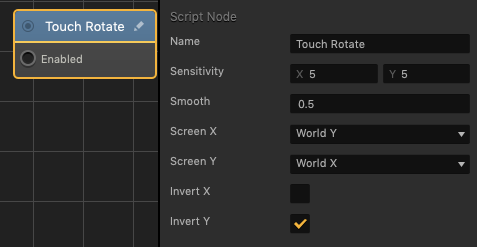

Option Description
Name Type a custom name for this node, if needed.
Sensitivity How fast or slow the asset will rotate. The higher is the value, the faster is the rotation. To affect the sensitivity along:

  • The horizontal axis, enter a value in the X axis.
  • The vertical axis, enter a value in the Y axis.
Smooth Enter a decimal from 0 to 1 to determine how smooth the rotation will be, 1 being 100%.
Screen X Select an axis of the World that will be affected when the screen is dragged along the horizontal axis.
Scale Y Select an axis of the World that will be affected when the screen is dragged along the vertical axis.
Invert X Select this checkbox to invert how the asset is rotated along the horizontal axis.
Invert Y Select this checkbox to invert how the asset is rotated along the vertical axis.

If needed, you can also customize this node. For details, see Customizing Nodes.
