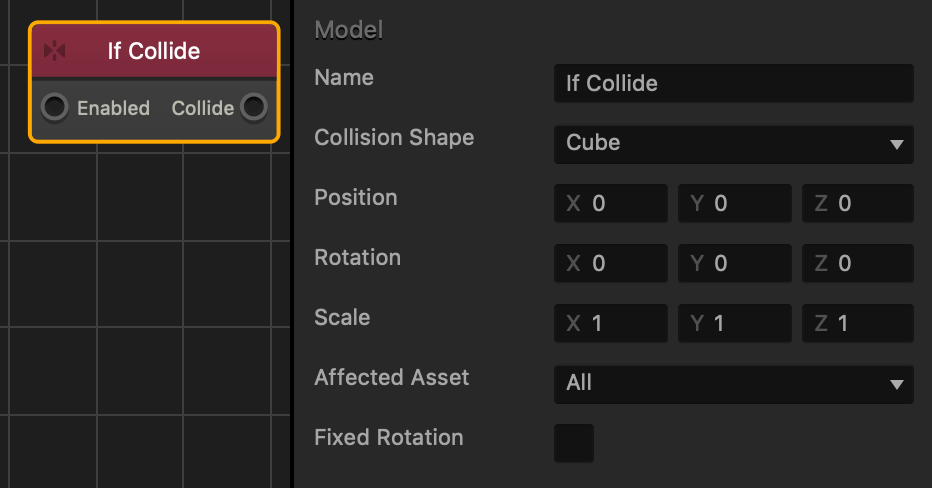

If Collide Node

This action node creates a Collision Shape that triggers a reaction when a physics based object makes contact. For a use case example, see Health, Damage, and Defeat.



Option Description
Name To create a custom name, replace “3D model” and type another name.
Collision Shape The area around the asset that other assets will collide with to trigger the desired outcome.
Position Move the collision shape around the asset by changing the axes values.
Texture Offset Move the texture along the axes by entering different X and Y axis values.
Rotation Rotate the collision shape by entering different axes values.
Scale Change the size of the collision shape by entering different axes values.
Affected Asset Choose which asset or which type of asset can trigger the desired outcome.
Fixed Rotation Prevents the asset from rotating the collision shape despite the asset being rotated in the scene.
